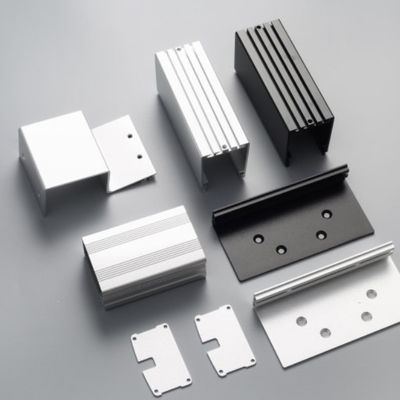

SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts

SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts

  • Highlight

    SMD EMI high precision metal stamping parts

    ,

    xiange PCB rf shielding can

    ,

    SMD EMI rf shielding can

  • Products
    SMD EMI PCB RF Shield Cover,stamping Contacts, Metal Parts
  • Process
    Metal Sheets Fabrication,Welding Cutting Punching Stamping
  • Application
    SMD EMI PCB RF Shield Cover
  • Place Of Origin
    China
  • Tolerance
    +/-0.02mm
  • MOQ
    1 Piece
  • OEM/ODM
    Acceptable
  • Equipment
    Precision Stamping Parts
  • Materials
    Cooper , Brass , Phosphor Bronze , Stainless Steel , Cupronickel, TinPlate
  • Function
    RF PCB Shielding Cover
  • Used
    PCB Board
  • Surface Finishing
    Normal,tin Plating ,nickel Plating
  • Package
    Platic Bag ,Blister Box ,Tap Reel Or As Your Required
  • Our Advantages
    1.) 24 Hours Online Service & Quickly Quote/Delivery. 2.) 100% QC Quality Inspection Before Delivery, And Can Provide Quality Inspection Form. 3) To Provide Production Design, Production And Technical Service, Mould Development And Processing, Etc
  • Place of Origin
    China
  • Brand Name
    Xiange
  • Certification
    ISO 9001:2015 SGS RoHS
  • Model Number
    RF-XG-4
  • Document
  • Minimum Order Quantity
    1 pcs
  • Price
    USD 0.01$-0.5$
  • Packaging Details
    Carton Wooden case
  • Delivery Time
    5-8 days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    10 SET per week

SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts

Custom High Precision Metal Stamping Emi Metal Rf Shielding Cover Case Shield For Pcb Board Services

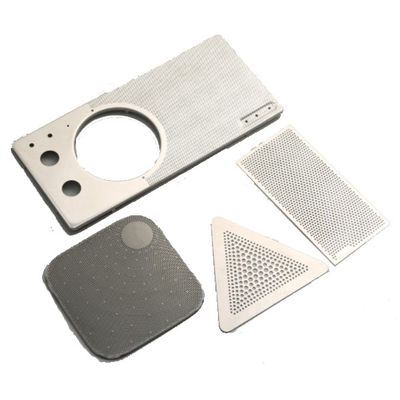

SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 0

Product Description




echnical Specification
Flatness / Coplanarity
< 0.10 mm typical
Mounting Type
Surface Mount

Material Types
Pre-plated CRS;
Nickel-Silver alloys;
Stainless Steel;
Storage Temperature (C)
10°-25° C
Plating Options

Tin, Nickel, Other Options Available
Packaging

Tray; Tape and Reel; Foam/Layer Pack
Applications
PCB Component Level Shielding




Industries


5G Data Infrastructure;
5G Telecom;
Consumer Electronics;
Industrial;
Energy & Utilities;
Mobile Infrastructure;
Medical;
Test & Measure;
......






Name: Precision Custom Stamping Metal SMD PCB RF EMI Shield Cover, Shield Frame
Material:

Cooper , Brass , Phosphor Bronze , Stainless Steel , Cupronickel, TinPlate

or according to your requirement.

Surface Treatment Nickel Plated, Tin Plated, Gold Plated, Silver Plated, etc
Packing Plastic bag , Blister box , Tape reel or according to your requirement.
Appliance: Auto, motorbike, motor vehicle , household electrical appliances,computer and other fields .etc.
Delivery:

Common order: 15-18 work days for mould ,

7-18 work days for production

Exact leadtime base on actual project and quantity order.

Quality Guaranteed 100% Responsible , made by ISO ,RoHs Standard
Terms of Trade EXW, FOB, CIF



Description

XIange ,the leading manufacturer of OEM precision sheet metal stamping parts services worldwide with over 20 years experienced. Approved by ISO 9001: 2015, ISO 14001: 2004 and IATF16949, professionally specializing in the production of all types of spring clips, EMI shielding, electrical connectors,electrical terminals ,contact and other precision metal stamping parts.





  • Sheet metal thickness 0.1 - 10mm
  • More than 10 kind of materials and finishes are available
  • Fastest delivery time 3 working days





Product Name
EMI shield can, shield can, shielding cover, shielding case,metal shield can
Material
Stainless Steel / Copper-nickel-zinc / Tinplate
Thickness (mm)
0.1 / 0.15 / 0.2 / 0.3 / 0.5
Surface
Nickel-plated/Sn-plated/Tin-plated / Spraying insulating paint / No plated
Packing
Carrier tape / Blister tray
Certificate
ISO 9001:2015 / ROSH
Comparison
Type
Tinplate
Shielding Can
Stainless Steel
Shielding Can
Copper-Nickel-Zinc
Shielding Can


Advantages


1) Low price
2) Easy to solder with tin
1) Cheaper than Copper-nickel-zinc
2) Bright surface, not easy to oxidize and rust
3) High strength
4) Good shielding effect
1) Bright surface, not easy to oxidize and rust
2) Excellent shielding effect
3) Easy to solder with tin
4) Good corrosion
resistance


Disadvantages
1) Easy to oxidize and rust
2) The shielding effectiveness is not as good as stainless steel and copper-nickel-zinc
Hard to solder with tin, it is only suitable for shielding cover, not suitable for shielding bracket.
1) Material is softer
2) High price

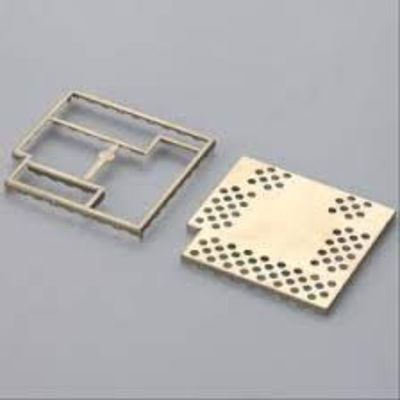

SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 1

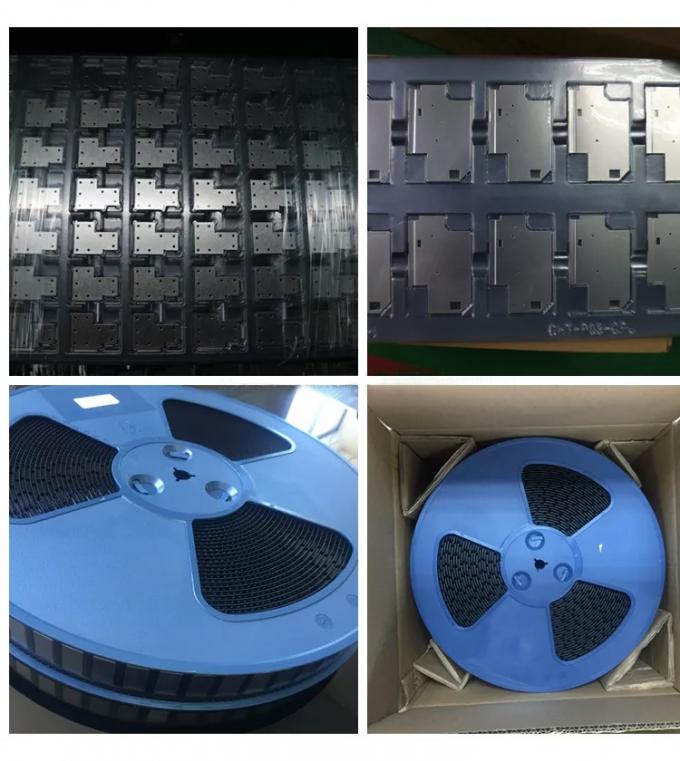

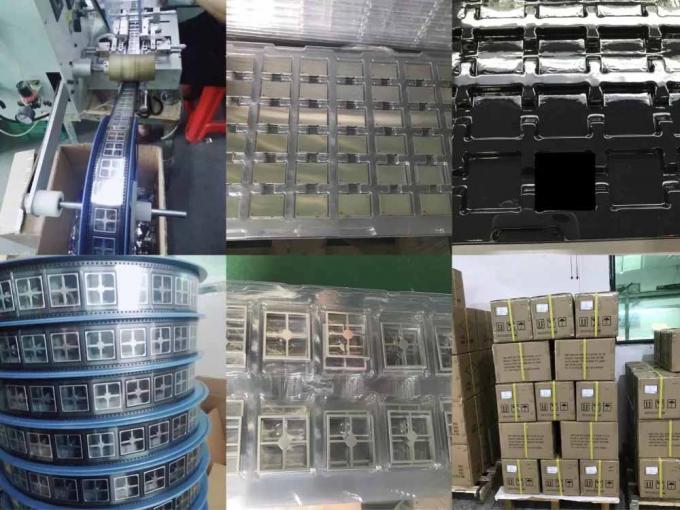

Package:

SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 2



SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 3

SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 4



SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 5

                                OUR ADVANTAGES

SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 6

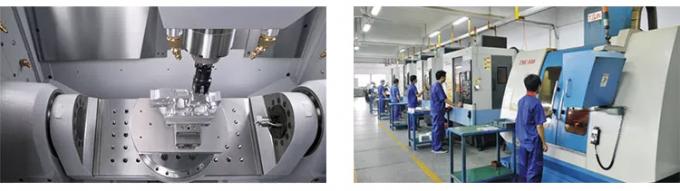

       High precision                Fast Lead Time

Advanced 5-axis CNC and imported processing            We have multiple CNC machining machines, skilled

equipment with an accuracy of ±0.02-0.10 mm               production workers, guarantee fast lead times



SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 7

   Strictly Confidential           Quality Inspection

We will protect the customer's design and the                    We have a strict quality inspection process to

customer can request a confidentiality agreement.                     ensure the quality of our products.



SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 8







SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 9



SMD EMI PCB RF Shielding Can High Precision Metal Stamping Parts 10

Q:What do you need to provide a quote?

    Please kindly send us the drawing or sample of your product. Details below should be included:

A:. Materials B. Surface Finish C. Tolerance D. Quantity



Q:How do I know about the production?

A:We will double confirm your requirements and send you the sample before mass production.

During the mass production,we will keep you informed of any progress. Besides, we will do

100% quality inspection before shipment.



Q:How do I know about the delivery?

A:We will inform you of the tracking number once we get it from shipping agent. Also we will keep

updating the latest shipping information for you.



Q:What will you do for after sales?

A:When our parts apply to your products,we will follow up and await your feedback.Any question

related to our parts,our experienced engineers are ready to help.



Q:How to contact with sales ?

A:You can send inquiry of our products,it will be replied within 6 hours;You can contact dirrectly with our sales through Alitalk or Skype as you like.



Q:What information should I give to you for inquiry?

A:If you have drawings or samples,pls feel free to send us,and tell us your special requirements such as material ,tolerance,surface treatments and the amount you need,ect .



Q:How to order?

A:Please send us your purchase order by Email or Fax, or you can ask us to send you Proforma Invoice (P/I)

for your order. We need to know the following information for your order:
1) Product information: Quantity, Specification(size ,material, and packing requirement) or other technology requirement,
the drawing of your project will be the best.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.



Q:How about certificate?

A:We will make 100% full inspection and provide the inspection reports.



Q:Is it possible to return the money if the quality is not good?

A:This has never been occured right now ,as we treat the quality as our key of development.Quality and service is everything for us.
